Plug & Play EV Conversions

Resolve Controller & Wiring Harness

Resolve Controller and Wiring harness for Nissan Leaf
check

Comprehensive Kit

check

80-160 kW Inverter

check

24-60 kWh Battery pack

check

No configuration required

check

EMC R10 Certified

check

Email Support

car iconcar iconcar iconcar iconcar icon

Join 300+ EV Converters

Step By Step Guide

Step 1
step number

Prepare your vehicle

Remove the internal combustion engine and all related components.

Step 2
step number

Source EV powertrain

Find a damaged Nissan Leaf at a nearby salvage yard, keeping both the powertrain costs and heavy-component shipping expenses affordable.

Step 3
step number

Install EV components

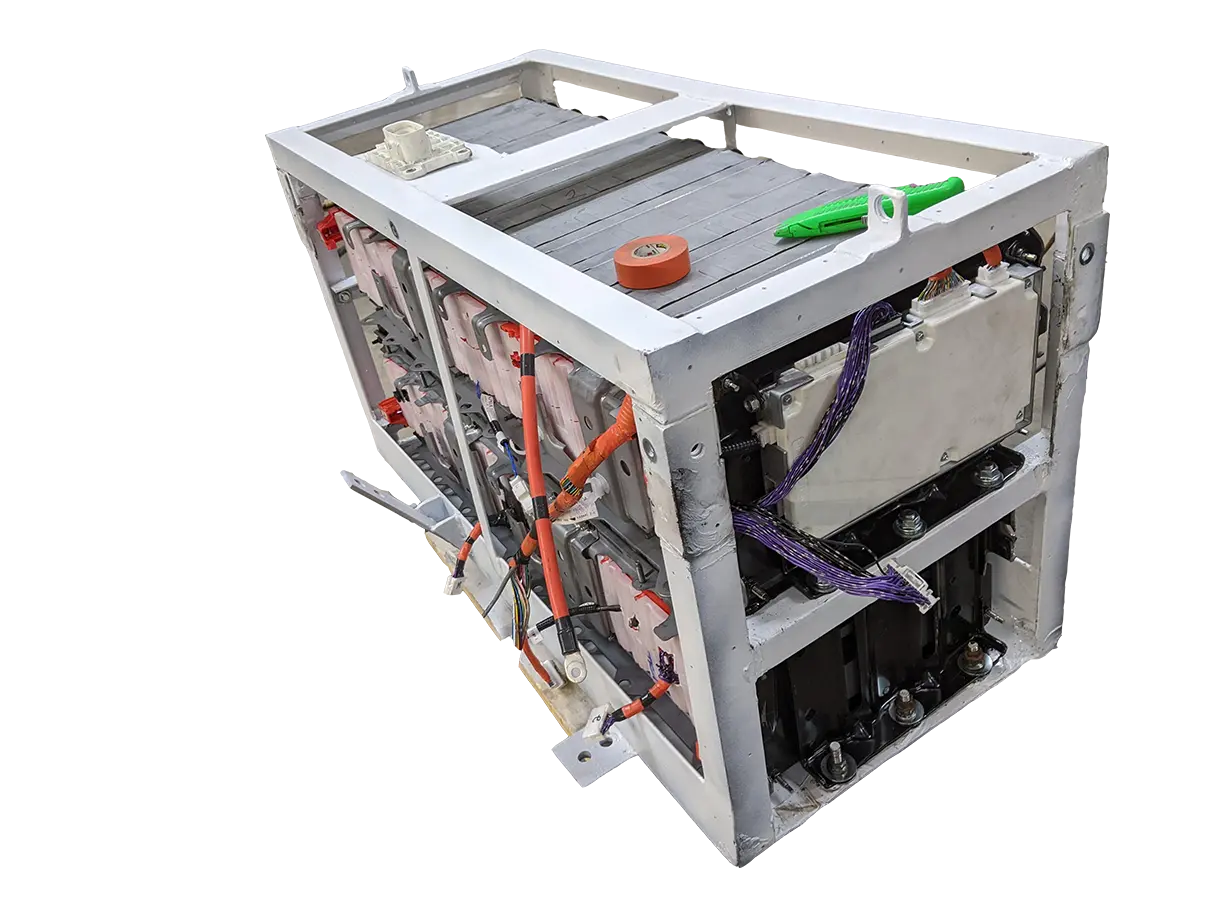

Mount the electric motor, find space for the onboard charger, run high voltage lines to each component, and build a new battery box that suits your vehicle.

Step 4
step number

Wiring and power management

The Resolve controller and wiring harness provide a plug-and-play solution, reducing installation time from days to less than one hour.

Wiring Harness Document

Customer Journeys

With hundreds of Resolve controllers sold, some have shared their EV conversion projects on YouTube and forums. We have collected them below

Previous
Land Cruiser

Land Cruiser

BMW 2002e

BMW 2002e

Land Rover III

Land Rover III

Nissan NX

Nissan NX

Honda CRX

Honda CRX

Next

Compatible Nissan Leaf Components

Compatible components
  • Inverter & Motor
    • Power: 80-110 kW
    • Torque: 254-340 Nm
    • Synchronous AC motor
  • Onboard charger
    • AC charging: 3.3-6.6 kW
    • Quick charging: 50 kW
    • Built-in DC-DC converter
Battery pack
  • Batterypack
    • Capacity: 24-60 kWh
    • Precharge circuit
    • Integrated BMS

Our Partners

legacyspeedhutevshopevolutionevswap

Youtube Videos

FAQ

To estimate the range of your finished EV-conversion is difficult, it depends on a lot of factors, such as the weight of the car, gear ratio, battery pack etc. A possible solution is to check out our EV conversions page. To check if any previous customers have converted and documented a similar car.

No at this time the only compatible components are the Nissan Leaf on board charger, inverter, motor and battery pack from 2013 to 2024

24 kWh- Max Power: 110 kW- Module weight: 3.8 kg- Number of modules: 48- Total module weight: 182 kg- Module series: 2s- Net kWh: 22 kWh- Dimensions: 303 x 223 x 36 mm 30 kWh- Max Power: 110 kW- Module weight: 7.75 kg- Number of modules: 24- Total module weight: 186 kg- Module series: 4s- Net kWh: 27.7 kWh- Dimensions: 303 x 223 x 72 mm 40 kWh- Max Power: 160 kW- Module weight: 8.7 kg- Number of modules: 24- Total module weight: 209 kg- Module series: 4s- Net kWh: 36 kWh- Dimensions: 303 x 223 x 72 mm 62 kWh- Max Power: 160 kW- Module weight: Much heavier- Number of modules: -- Total module weight: -- Module series: (4x9s3p), (8x4s3p), (4x7s3p)- Net kWh: 56 kWh- Dimensions: -
