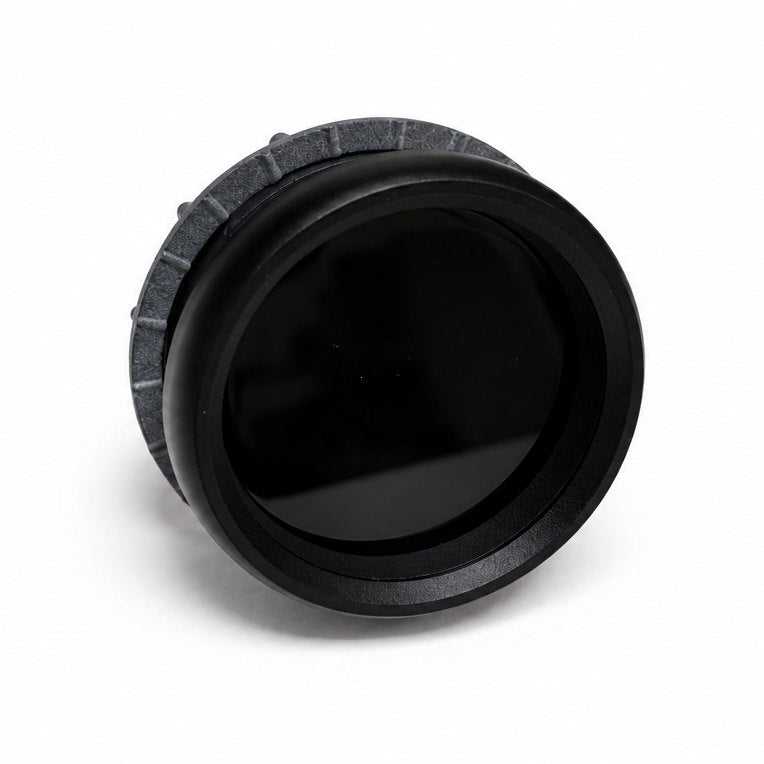

Resolve Display

A 1.75" round AMOLED gauge for EV conversions. It reads the CAN bus and shows battery charge, motor torque, gear and temperature while driving, and charging power while charging. It can also be a G-force meter or a battery power graph.

It is made for the Resolve Controller and Nissan Leaf drive parts (battery, inverter, charger). The power graph can also read other batteries' signals.

You change its settings and update it from the browser over USB-C. Nothing to install.

Pages

• Installation: mounting, wiring and pinout.
• Screens: what each screen shows.
• Settings: connecting over USB, and every setting.
• Firmware updates: updating, and recovering a display that does not connect.
• Specifications: display, dimensions, electrical.
• Troubleshooting: dark screen, errors, connection problems.
• Console: the Resolve Controller's browser console.
